Drupal 8 Caching overview

Sascha Grossenbacher | @berdir | md-systems.ch

md-systems.github.io/drupal-8-caching

Sascha Grossenbacher (@berdir)

  • Lead developer at MD Systems
  • Active member of Drupal community since 2008
  • Maintainer of the Entity system and plenty of contrib projects
  • "Core generalist", top 5 D8 contributor
  • #3 on Drupal answers

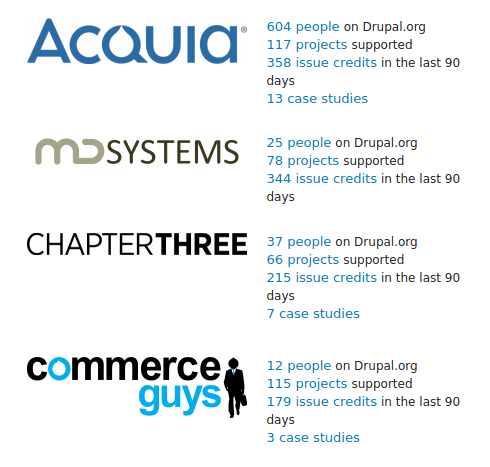

MD Systems - top contributors

  • D8 expert
  • D8 media expert - lots of media clients
  • 20% of every project to the community
  • Full projects, audits, bootstrap weeks, consulting, architecture, ...

Topics

  • Basics
  • Cache Backends
  • Cache bins
  • Cache invalidation
  • Render caching
  • Cacheability metadata: Keys, Tags, Contexts, Age
  • Page cache & BigPipe

Basic Cache API

Why cache?

Goal
Improve performance

How
Store the result of slow calculations so that they do not need to be executed again

Documentation: api.drupal.org caching topic

Get / Set


          $key = 'my-unique-cache-key';
          if ($cache = \Drupal::cache()->get($key)) {
            $data = $cache->data;
          }
          else {
            $data = my_slow_calculation();
            \Drupal::cache()->set($key, $data);
          }

          // Alternative for multiple items
          \Drupal::cache()->getMultiple($keys);
          \Drupal::cache()->setMultiple($items);


Static cache

Static caching refers to the concept doing in-memory, per-request caching

In Drupal 7 and non-OOP code in Drupal 8, the function drupal_static() is often used

In Drupal 8, using a non-static property on a service works in the same way

Static and persistent cache

Cache backends usually do not use static cache, requesting the same item twice results in two queries


      protected $data;

      protected function getData() {
        if ($this->data === NULL) {
          $key = 'my-unique-cache-key';
          if ($cache = $this->cacheBackend->get($key)) {
            $this->data = $cache->data;
          }
          else {
            $this->data = $this->buildData();
            $this->cacheBackend->set($key, $this->data);
          }
        }
        return $this->data;
      }

Cache backends

Storage for cache items

Core

  • Memory: In-Memory storage, not persisted across requests
  • Database: Default storage in the (SQL) database
  • APCu: Shared-Memory inside the PHP process, not shared with CLI/multiple servers
  • Null: No caching at all

Contrib

  • Slushi Cache: A database backend with a configurable max lifetime
  • Redis: Standalone "in-memory data structure store". In beta now, and heavily used on our sites.
  • Memcache: Standalone "memory object caching system". No personal experience with the 8.x version. Alpha

ChainedFast Backend

Problem: APCu is fast but not shared across multiple servers/with drush

  • Backend that wraps a fast and a consistent backend.
  • A last-write timestamp is stored in consistent backend.
  • Loads from fast first, if missing or too old, fetch from consistent backend
  • If it exists there, update fast backend

BackendChain

Limited use cases, no non-test uses right now in core

Can be used as an alternative to the static cache pattern shown before


$chain = new BackendChain('noop');
$chain
  ->appendBackend(\Drupal::cache('static'))
  ->appendBackend(\Drupal::cache('default'));

$chain->get('my-unique-cache-key');
$chain->get('my-unique-cache-key');


Cache bins

A container for cache entries with a configurable backend


          \Drupal::cache($bin)->get()

          $container->get("cache.$bin")


Standard bins (directly used)

  • default: Default, for small-ish, few key variations
  • data: Bigger caches, many key variations
  • discovery: Small, frequently used, usually for plugins and similar discovery processes

Standard bins (indirectly used)

  • bootstrap: For small caches used on most requests
  • render: Used by the render cache and page cache, huge amount of keys
  • config: Used for caching configuration
  • static: Memory only, when persistence is not desired

Define your own


yourmodule.services.yml:

  cache.your_bin:
    class: Drupal\Core\Cache\CacheBackendInterface
    tags:
      - { name: cache.bin }
    factory: cache_factory:get
    arguments: [your_bin]


Configuration


// Use redis by default.
$settings['cache']['default'] = 'cache.backend.redis';

// Use the null backend to disable caching for certain bins.
$settings['cache']['bins']['render'] = 'cache.backend.null';



How to configure redis (on platform.sh): https://docs.platform.sh/frameworks/drupal8/redis.html

Intermezzo: Development settings

Never develop without using sites/example.settings.local.php

  • Enables verbose error display
  • Disables CSS/JS aggregation
  • Can disable render cache

Cache invalidation


There are only two hard things in Computer Science: cache invalidation, naming things and off-by-one errors.
http://martinfowler.com/bliki/TwoHardThings.html

Delete

In case there is a single or only a few cache item with known keys, delete them directly


\Drupal::cache()->delete('my-key');

\Drupal::cache()->deleteMultiple(['my-key:de', 'my-key:en']);

\Drupal::cache()->deleteAll();


Faster than cache tags, no runtime overhead. If possible, just write new caches instead of using delete()

Invalidate

Same methods as delete, except invalidate*(). Does not actually delete just marks records as invalidated.


\Drupal::cache()->invalidate('my-key');

\Drupal::cache()->invalidateMultiple(['my-key:de', 'my-key:en']);

\Drupal::cache()->invalidateAll();


Extremely rarely used. Core has a single invalidate call and that is likely wrong*.

* Might be my fault.

Expiration

Set a fixed expiration time for a cache item on write.

Examples


// Cache for 10 minutes, not known if/when it changes.
$cache->set($key, $data, REQUEST_TIME + 600);

// $data is only valid today.
$cache->set($key, $data, strtotime('tomorrow midnight'));


Note: Expiration is a timestamp, not an age

Cache tags

Dependencies of your cache: entities, configuration, custom


// Data must be invalidated if node 1 or the node settings change.
$cache->set($key, $data, ..., ['node:1', 'config:node.settings']);

// Tag invalidation is across all bins.
$cache_tag_invalidator->invalidateTags(['my_tag']);
Cache::invalidateTags(['my_tag']);



Entity and Config cache tags are invalidated automatically. Use custom cache tags for unknown amount of cache item variations.

https://www.drupal.org/docs/8/api/cache-api/cache-tags

Behind the Scenes: Cache tags

  • Invalidations of each cache tag are counted by the checksum service.
  • When writing a cache item, the sum of invalidations of all given cache tags is stored as checksum
  • When reading the cache item, the invalidations are counted again and compared
  • If the checksum is different, then the item is invalid.

Runtime overhead on every cache read. Limit cache tags to the required minimum.

Allow invalid

Invalid data can still be used.

$cache = \Drupal::cache()->get('my-key', TRUE);
if ($cache && $cache->valid) {
  return $cache->data;
}
elseif (\Drupal::lock()->acquire('my-key')) {
  // Rebuild and set new data.
}
elseif ($cache) {
  // Someone else is rebulding, work with stale data.
  return $cache->data;
}
else {
  // Wait or rebuild.
}

Other uses: Rebuild in background (queue), min-age

Render caching

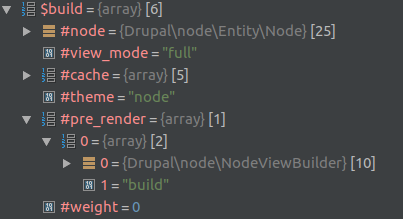

Input: Render arrays

$build = $view_builder->view($node, 'full');

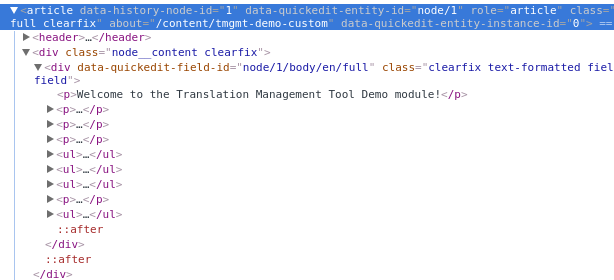

Output: HTML

Delay processing

  • Render caching can not cache what already happened
  • Do a little as possible initially
  • Only define #theme/#type, #pre_render callbacks and information needed for them

Cacheability metadata

  • Cache Key
  • Cache Tags
  • Cache Contexts
  • Max Age

www.drupal.org/developing/api/8/render/arrays/cacheability

Cache Key

Is my data worth caching? If yes, what identifies my data?

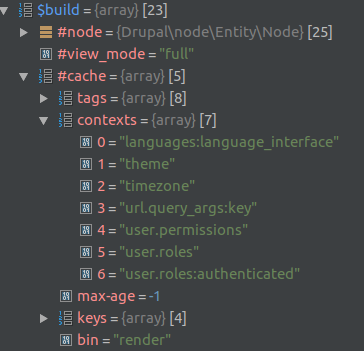

Cache Contexts

Does my output vary by something?

Examples:

theme, language, user roles, permissions, URL, query
        arguments, timezone, ...

Default cache contexts:

theme, languages:language_interface, user.permissions

www.drupal.org/developing/api/8/cache/contexts

Cache Contexts

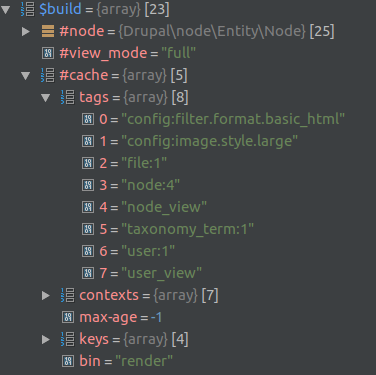

Cache Tags

What things does my output depend on?

What changes require that my data is regenerated?

Max Age

When does my output become outdated?

  • Permanent (-1)
  • Age in seconds (3600)
  • Uncacheable (0)

How is this stored?


          {cache_render}

cid:      entity_view:node:4:full:[languages:language_interface]=en
          :[theme]=bartik:[timezone]=Europe/Berlin:
          [url.query_args:key]=:[user.permissions]=da0b1c64....:
          [user.roles]=is-super-user
data:     a:3:{s:7:"#markup";O:25:"Drupal\Core\Render\Markup....

expire:   -1

tags:     config:filter.format.basic_html config:image.style.large
          file:1 node:4 node_view rendered taxonomy_term:1 user:1
          user_view

checksum: 17


Bubbling

Problem: List cache tags

Every node view on your site has the node_list cache tag

Example: "Promoted events" block in sidebar

Every time any node is saved, the block and every page containing that block is invalidated

Solution: Views Custom Cache Tag

Allows to use a configurable cache, e.g. event:promoted

Placeholders: news:section:{{ raw_arguments.arg1 }}

Requires code to define/invalidate cache tags in a hook_entity_presave()

www.drupal.org/project/views_custom_cache_tag

Invalidation example

Changes

  1. A new node (7) is created in the "Sport" section Invalidations: node:sport, node_list
  2. Article 5 is changed Invalidations: node:5, node:sport, node_list

Invalidations

Next request

Next request

Next request

Advanced render caching concepts

Lazy Builder

For self-contained parts of a page

Examples: Blocks, Comment form, Poll, CSRF tokens, Flag links

A callback with arguments (scalar values only)

Can be put as a placeholder in cached data if uncacheable/many variations

Lazy Builder example


  $output['comment_form'] = [
    '#lazy_builder' => ['comment.lazy_builders:renderForm', [
      $entity->getEntityTypeId(),
      $entity->id(),
      $field_name,
      $this->getFieldSetting('comment_type'),
    ]],
    '#create_placeholder' => TRUE,
  ];


Cache Redirects

Cache contexts can bubble up.. but they are part of the key that needs to be known initially

The secret is that two cache entries are stored, one just contains all the cache contexts

Cache Redirect Example

  1. Get render cache for node 1 full, with default cache contexts: theme, language, user.permissions
  2. Cache hit, but the result is a redirect: This cache varies also by timezone and query args
  3. New cache ID is built, fetched and the result of that is returned
  4. On a cache miss for the new cache contexts, it is build.
  5. If new contexts were added, the original cache item with the redirect is update to include those too.

Page caching

Internal Page Cache

  • Only for visitors without a session
  • Cache Key is the URL, including all query arguments, caches permanently
  • Supports cache tags
  • Does not support cache contexts or max age*
  • Does not respect "Page cache maximum age" but does respect the "Expires" header on the response
  • Caches response objects
  • Fast

* https://www.drupal.org/node/2352009

Dynamic Page Cache

  • Caches full pages excluding placeholders, replaces them before sending the response
  • Supports cache tags, contexts and max-age
  • Works for all users
  • Considerably slower than Internal Page Cache
  • Skips pages that has uncacheable/high-variation elements that can not be placeholdered

Big Pipe

  • No longer experimental in 8.3.0
  • Sends the page *with* placeholders as HTML tags
  • Browser can start to render the page
  • Drupal then starts to process placeholders and sends the actual content *in the same request*
  • Javascript then replaces the placeholders with the actual content
  • Improves perceived performance, time until fully rendered is the same
  • Concept developed by Facebook

Big Pipe Demo Video

Video by @WimLeers

So, which of those caching methods do I use now?

All of them!

None of those features are exclusive, they work best when combined together. And Drupal 8 does that automatically, based on cacheability metadata, with almost zero configuration.

But this is all so complicated, I just want to build my D8 site and not worry about caching!

Hitchhikers Guide to the Galaxy, http://geekifyinc.com/product/hitchhikers-guide-to-the-galaxy-tablet-ereader-cover/

You can!

Knowing some of these concepts can help, but...

  • Site builders: All those things exist so that Drupal 8 is able to automatically cache and invalidate all your views, blocks, content, ..
  • Developers: You only need to think about caching for your own functionality
  • Frontend: Disable CSS/JS aggregation, twig and render cache (see example.settings.local.php) and caching is mostly out of your way *
  • * Remember to test with caching enabled before deploying.

THANKS!

Questions?

Sascha Grossenbacher | @berdir | md-systems.ch

md-systems.github.io/drupal-8-caching
